Synecom ALY101-05 SF6 Gas Analyzer | Purity, SO₂ & Dew-Point Measurement

Description

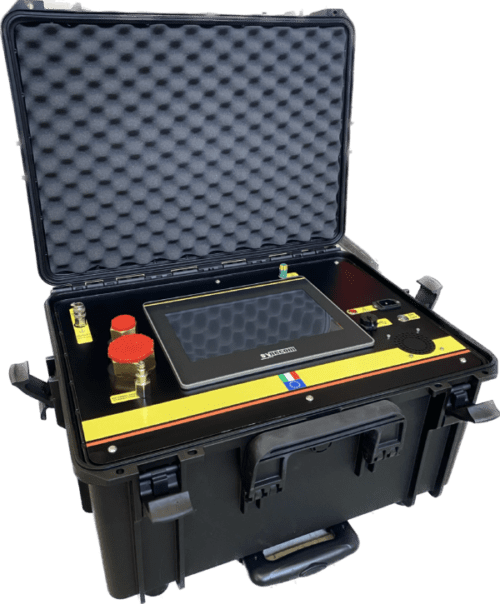

The ALY101-05 SF₆ Analyzer from Synecom (Italy) is an advanced, field-ready solution for the complete analysis of sulfur hexafluoride (SF₆) gas in power and high-voltage applications.
It simultaneously measures up to three critical parameters — SF₆ purity, SO₂ content, and dew-point — fully complying with CEI EN 60480 standards for gas handling and reuse.

Engineered with a closed-loop system, it guarantees zero SF₆ gas emission, enabling environmentally safe testing. The integrated pump-back function allows the sampled gas to be returned to the compartment after analysis or used in continuous-flow mode for real-time monitoring.

Featuring a 10.1-inch TFT touchscreen, internal rechargeable battery, and USB data export, the ALY101-05 combines laboratory-grade precision with robust portability for demanding field operations in power utilities, switchgear maintenance, and GIS testing facilities.

Technical Specifications:

Measurable Parameters: SF₆, SO₂, Dew-point
Display: 10.1” TFT color screen
SF₆ Sensor: Infrared (NDIR), Resolution: 0.01 Vol. %, Accuracy: ± 0.5 Vol. %
SO₂ Sensor: Electrochemical, Range: 0–100 ppm (options: 0–20 / 0–500 / 0–2000 ppm), Accuracy: ± 2 %
Dew-Point Sensor: Range: –80 °C … +20 °C, Accuracy: ± 2 °C (from +20 to –40 °C)
Gas Connections: DN8 / DN20 Synecom valves with quick couplers
Pump-Back Pressure: Max 10 bar g
Max Inlet Pressure: 35 bar g
Min Inlet Pressure: 0.2 bar g (1.2 bar abs)
Data Output: USB memory stick
Power Supply (charging): 100–240 V AC 50/60 Hz
Operating Temperature: –10 °C to +50 °C
Storage Temperature: –10 °C to +60 °C
Dimensions: 428 × 555 × 306 mm
Weight: 24 kg
Battery: Internal rechargeable (multiple analyses per charge)

Included Accessories:

• 6 m hose with quick couplings

• SF₆ sensor (infrared)

• SO₂ sensor (electrochemical)

• Dew-point sensor

• Gas storage bag

• Transport case

• User manual and calibration certificate

Optional Accessories:

• ALY104-01 – Gas recovery bag

• ALY103-01 – Pressure reducer for gas analysis in cylinders

• TBS105-03 – 6 m hose extension

• VAL102-01 – DN8 Adapter Kit

• VAL103-01 – DN20 Adapter Kit

Certifications & Compliance:

• CE Conformity Certificate

• Sensor Calibration Certificate

• Helium Leak Test Certificate (UNI EN ISO 9712 – SNT TC1A)

Applications:

• High-voltage switchgear and GIS maintenance

• Power generation and transmission facilities

• Transformer gas analysis

• SF₆ handling and recovery systems

• Utility, EPC, and maintenance contractors in the GCC
