Description

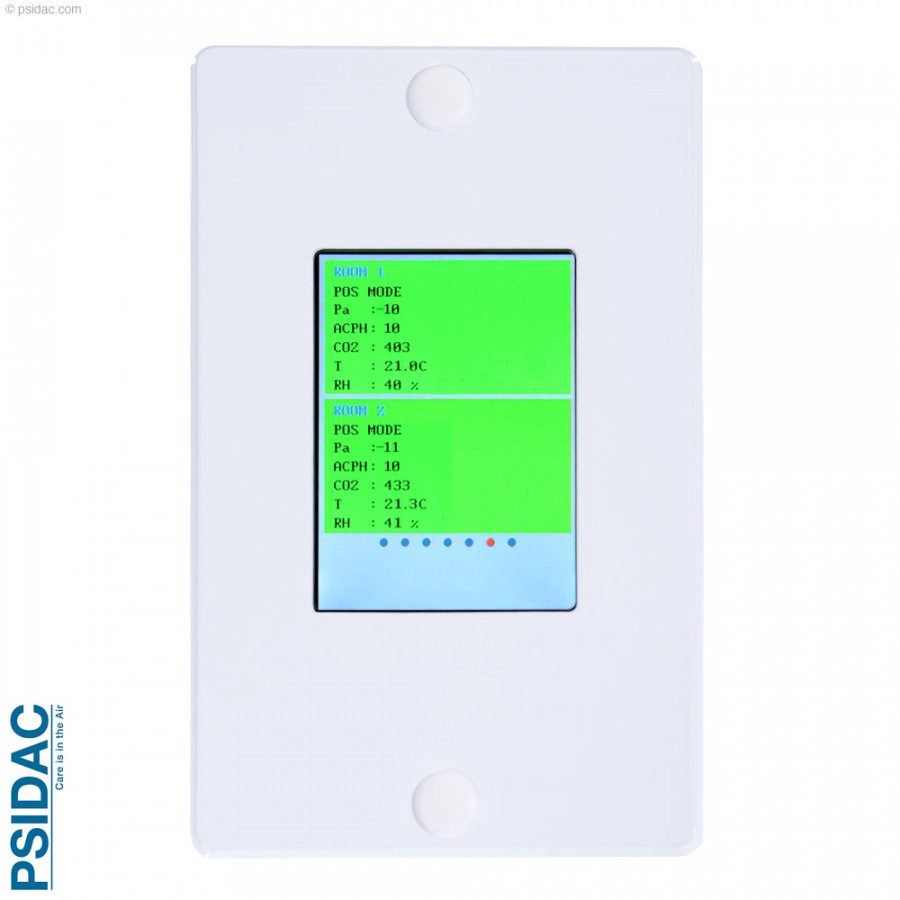

The PSIDAC CPS 6021 is a flexible master control panel designed for demanding environments like hospitals, laboratories, cleanrooms, and pharmaceutical facilities. It can monitor two rooms simultaneously, switching between positive-pressure or negative-pressure modes as needed. The panel supports up to 4 units (slaves) per room, enabling local display of selected parameters in adjacent areas. It communicates via Modbus RS-485 internally, and externally to a BMS or SCADA system. Users benefit from real-time status feedback (green = normal, yellow = warning, red = alarm) and the ability to log, alarm, and relay system events through the building ECM. The CPS 6021 supports a broad range of attached sensors — for gases (CO₂, O₂, etc.), flow, humidity, temperature, and particles — making it a central hub for environmental safety and control. Its modular design allows future expansion (e.g. additional slave panels) with minimal cost and wiring complexity.
Technical Specifications
Mounting: Wall mount (flush or surface)
Dimensions Master Panel: 150 × 100 × 5 mm (on flush box)
Display Area Size: 65 × 49 mm (LCD touchscreen)
Color / Housing: Standard white front
Communication – Internal: RS-485 Modbus
Communication – External: RS-485 Modbus RTU
Power Supply: 24 V DC @ 54 mA (for master unit)
Sensor Compatibility: FlowGuard FG 6280, 6282, 6283, GasLite sensor series, temperature, humidity, pressure, particle sensors
Relay Output (optional): 24 V AC/DC, 1 A max
Room Pressure Control: monitors and switches between positive / negative room modes
Panel Cutout: 114 × 90 mm (recessed box) or 150 × 100 mm (flush)
Slave Panels: Up to 10 slave panels in entire system

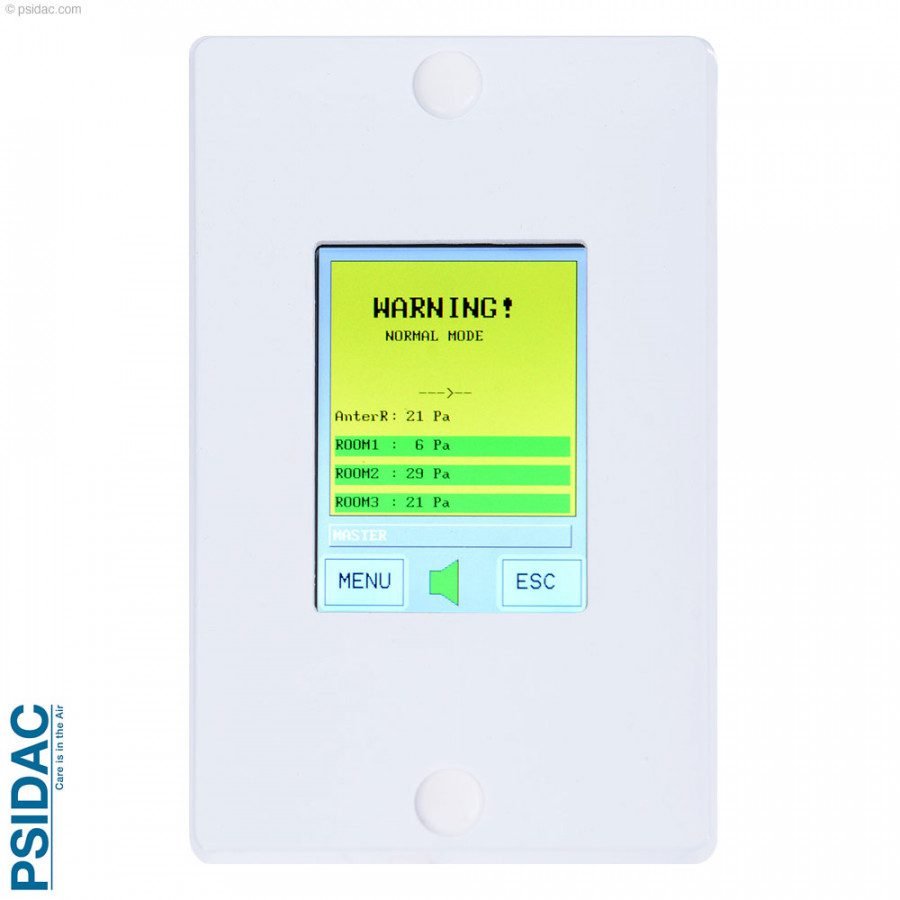

Indication Logic: Green (OK), Yellow (Warning), Red (Alarm)
Typical Attachments: multiple sensor types: gas, humidity, particles, flow, temperature, pressure
Operating Use: Suitable for environments requiring precise environmental safety monitoring (e.g., negative pressure monitoring in isolation rooms, labs etc)
