Description

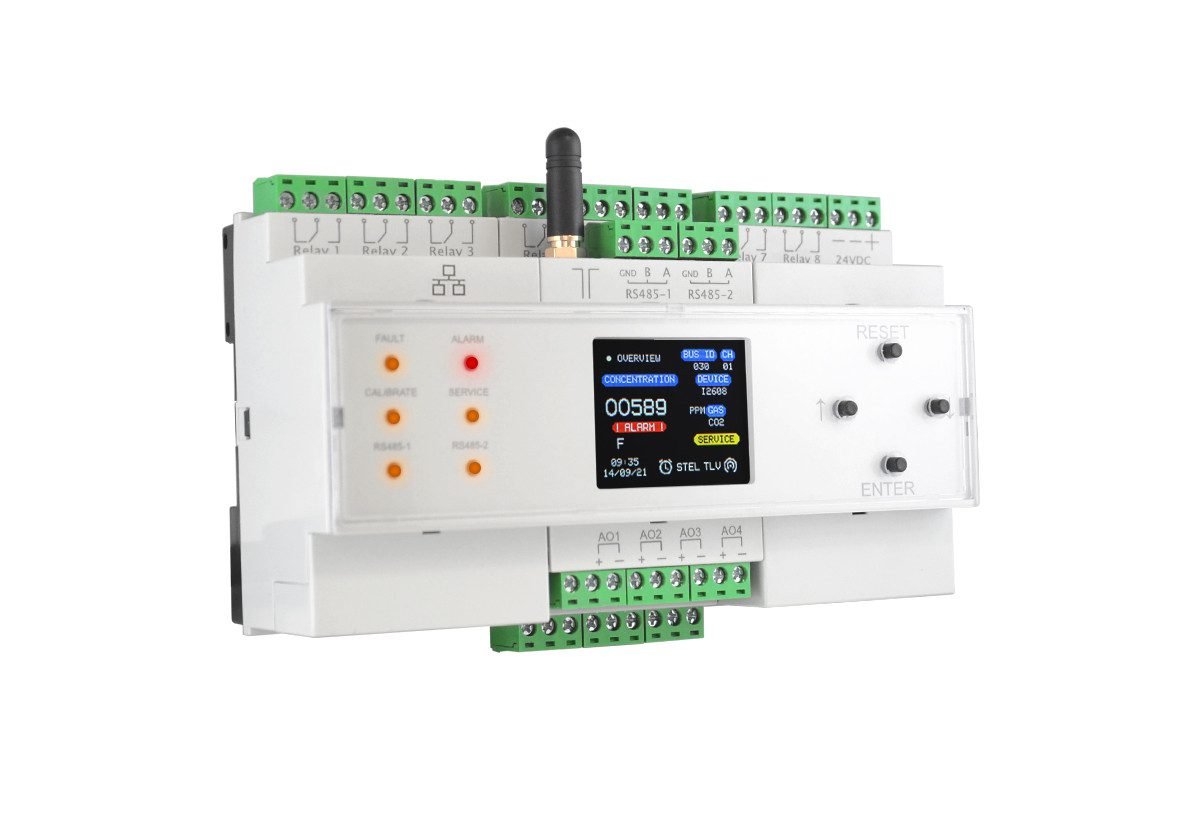

The Evikontroll μGas Control Panel is a central controller engineered for advanced gas detection systems. It connects to multiple Evikon gas transmitters via RS-485 (Modbus RTU) and manages sensor data, alarms, outputs, and integration with facility systems. The mGAS unit is ideal for medium to large installations in industrial parks, HVAC systems, cold storage, laboratories, parking garages, and similar environments requiring robust gas monitoring.
This control panel supports up to 32 individual sensor channels, each with independently configurable alarm thresholds. It has built-in relay outputs for alarming or control actions, analog outputs for ventilation control, and a front LCD/interface for local configuration and status. It also offers web server access and WiFi capability for remote configuration and monitoring via PC, tablet, or smartphone.
With full event logging, expansion modules support (relays, analog, light/sound modules), and flexible integration options, the Evikontroll mGAS is the heart of a scalable, safe gas detection network.
Technical Specifications
Channels / Sensor Support: Up to 32 sensors/transmitters
Alarm Levels: 3 independent per channel
Relay Outputs: 8 SPDT relays
Analog Outputs: 4 outputs (configurable)
Network Interface: RS-485 Modbus RTU (Master/Slave)
Web Server / Configuration: Embedded web UI
Connectivity: WiFi + Ethernet (for configuration)
Power Supply: 24 V DC
Weight: approx. 0.48 kg (from catalog)
Dimensions: (refer catalog drawing)
Mounting: DIN-rail
Operating Temperature Range: −20 °C to +65 °C (typical)
Protection Class / Housing: Industrial enclosure (IP rating as per Evikon’s catalog)
Expansion Support: Relay modules, analog modules, light / sound alarm modules
