Description
| Parameter | Specification |
|---|---|
| Sensor Type | Electrochemical |
| Target Gas | Ethylene (C₂H₄) |
| Measurement Range | 0 – 100 ppm (typical) |
| Output Signals | 4–20 mA, RS-485 |
| Alarm Outputs | Relay outputs |
| Power Supply | 24 V DC |
| Response Time | < 30 seconds |
| Operating Temperature | −40 °C to +50 °C |
| Housing | Flameproof metal enclosure |
| Certification | ATEX / Explosion-proof |
| Mounting | Wall mount |
An ethylene detector is a fixed gas safety device used to continuously monitor ethylene (C₂H₄) concentrations in industrial environments. Ethylene is widely used in chemical processing, sterilization support systems, and applications linked to ethylene oxide detection, but it is highly flammable and hazardous at elevated levels. A dependable ethylene sensor measures gas concentration and converts it into electrical signals for alarms and control systems. In pharmaceutical plants, aerospace facilities, semiconductor fabs, and cleanrooms, accurate ethylene gas detection is essential to protect personnel, prevent fire or explosion risks, and comply with international HSE standards.
Ethylene oxide sterilization uses ethylene oxide gas to destroy microorganisms on medical and laboratory equipment at low temperatures. The gas penetrates packaging and complex surfaces effectively. Because ethylene oxide is toxic and flammable, continuous ethylene oxide detection is critical to ensure safe sterilization cycles and protect workers.
Ethylene gas is detected using electrochemical sensing technology. A fixed ethylene detector continuously samples the air and measures gas concentration in parts per million. When preset thresholds are exceeded, alarms and ventilation systems activate to reduce hazards and maintain safe conditions.
Ethylene oxide is produced by reacting ethylene with oxygen over a silver-based catalyst under controlled pressure and temperature. The process involves flammable gases, making continuous ethylene gas detection essential during production, storage, and handling.
Why It Is Essential in the UAE & GCC

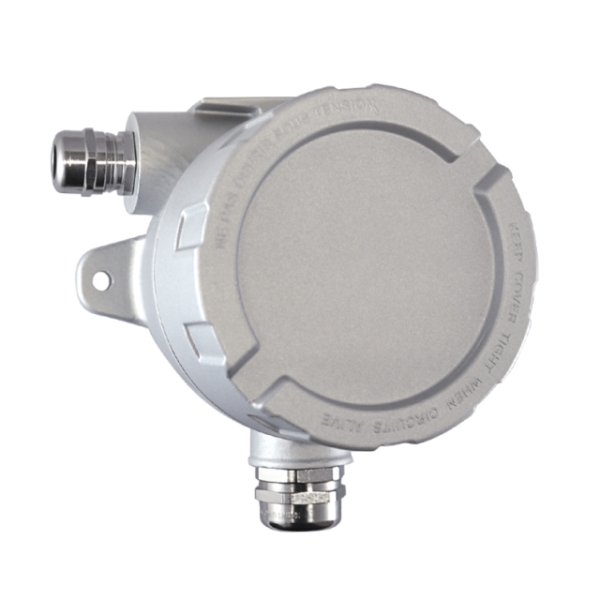

The UAE and GCC are expanding rapidly in pharmaceuticals, healthcare manufacturing, aerospace MRO, and advanced industries. High ambient temperatures increase gas volatility and explosion risks. The Evikon E2670-C2H4 Flameproof Ethylene Detector supports world-class safety standards, protects high-value assets, and aligns with the region’s industrial growth and compliance requirements.
Calibration Frequency
Gas detectors should be calibrated every 6 to 12 months, depending on site conditions, exposure levels, and safety regulations. Regular calibration ensures the ethylene detector delivers accurate and dependable performance in hazardous areas.
Why choose us?
Secure your hazardous-area operations with explosion-proof ethylene monitoring. Gas Detectors UAE is your trusted hydrogen gas detection suppliers in UAE and Authorised Distributor of Evikon.
Contact us today for expert consultation, fast delivery, and competitive pricing on the E2670-C2H4 Flameproof Ethylene Detector.
