Description
| Parameter | Specification |
|---|---|
| Detected Gases | Methane, Propane, Butane, and other combustible gases |
| Sensor Type | Catalytic bead (pellistor) sensor |
| Measurement Range | 0…100% LEL (Lower Explosive Limit) |
| Power Supply | 24 VDC or 230 VAC |
| Output Signals | 4–20 mA, RS485 (Modbus RTU) |
| Alarm Outputs | 2 × SPST relays, 250 V AC, 5 A |
| Response Time (T90) | < 30 seconds |
| Operating Temperature | -40°C to +60°C |
| Enclosure | Wall-mount ABS housing, IP65 protection |
| Dimensions | 106 × 150 × 58 mm |
| Weight | Approx. 250 g |
| Compliance | CE, RoHS certified |
A gas sensor is a device that detects the presence or concentration of gases in an environment. In the case of the combustible gas sensor, it continuously monitors the air for explosive gases like propane, butane, or methane. When gas levels rise above safe thresholds, the sensor triggers an alarm, helping prevent fire or explosion risks in kitchens, mechanical rooms, or gas storage areas.
A gas detector works by using a sensing element that reacts with the target gas. The sensor changes its electrical resistance or voltage output when exposed to gas. The system then interprets this signal and activates alarms or ventilation systems to mitigate danger.
There are four main types of gas detectors: electrochemical, catalytic bead, infrared (IR), and semiconductor (MOS) sensors. Each type serves different gases and environments from industrial ammonia to residential LPG detection.
The number of detectors depends on the size and layout of your building and gas source locations. Typically, every kitchen, mechanical room, or gas storage area requires at least one detector per 100 m² to ensure optimal safety and compliance with UAE Civil Defence regulations.
In the UAE and GCC, where LPG and natural gas are widely used for cooking and heating, combustible gas detection is a legal and safety necessity. The E2611-LEL helps property owners, facility managers, and contractors meet regional safety codes, prevent accidents, and ensure uninterrupted business operations. For the hospitality and residential sectors, early detection means saving lives, property, and reputations.
Why Choose Us?
- Protect lives and property from gas-related accidents.
- Comply with UAE safety standards for kitchens and mechanical areas.
- Ensure smooth facility operations by avoiding costly shutdowns.
- Compatible with automation systems, making it ideal for contractors and integrators.
This general combustible gas detector combines reliability, safety, and affordability, making it the top choice for the UAE’s hospitality and housing sectors.

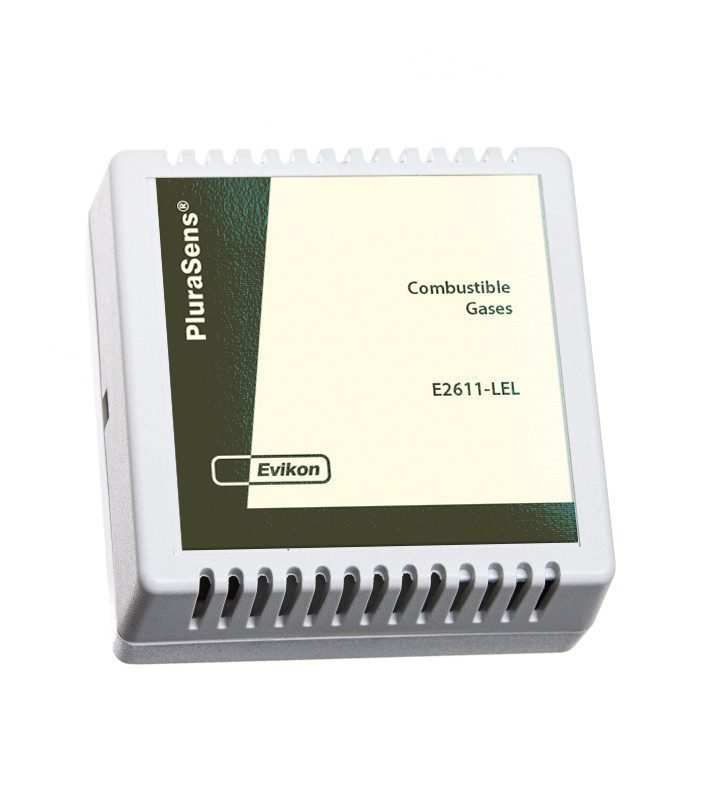

Enhance your facility’s safety with the E2611-LEL Combustible Gases Detector.
Gas Detectors UAE is the authorized distributor of Evikon Estonia, providing reliable combustible gas detection solutions across the UAE.
Contact us today to request a quote or expert consultation for your safety starts with trusted detection.
