Description
| Feature | Description |
|---|---|

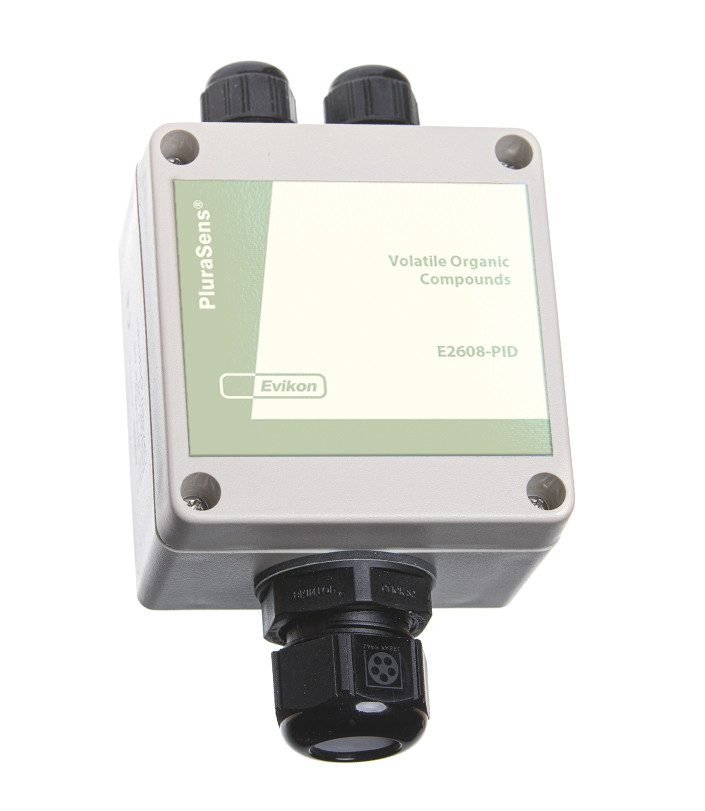

| Model | E2608-PID |
| Gas Detected | Volatile Organic Compounds (Solvent Vapors) |
| Sensor Type | Photoionization Detector (PID) |
| Detection Range | 0…2000 ppm VOC (typical) |
| Interface | Modbus RTU over RS485 |
| Power Supply | 11–30 VDC |
| Output Signal | 4–20 mA / 0–10 V |
| Operating Conditions | -20°C to +50°C |
| Enclosure Material | Durable ABS plastic |
| Mounting | Wall-mounted |
| Calibration | Factory calibrated / Field recalibration supported |
| Manufacturer | Evikon, Estonia |
A vapor sensor is a device that detects the concentration of gases or vapors in the air, particularly volatile organic compounds (VOCs). These compounds can come from paints, solvents, fuels, and other chemicals used in industrial processes. Vapor sensors help monitor air quality and prevent harmful exposure to workers by continuously measuring gas concentrations and triggering alarms when levels exceed safety limits.
Solvent extraction is a method used to separate compounds based on their solubility in two different liquids. Typically, one liquid is water, and the other is an organic solvent. The process is widely used in chemical and pharmaceutical industries for purifying compounds. Monitoring solvent vapors during extraction is crucial to prevent occupational exposure and ensure safe ventilation in closed environments.
There are hundreds of solvents, each with unique properties and applications. Common industrial solvents include acetone, ethanol, methanol, toluene, and xylene. These substances are used in cleaning, manufacturing, coatings, and extractions. Detecting these solvent vapors is essential to maintaining safe air quality, as prolonged exposure can cause health issues or flammability risks.
Solvents such as hexane, ether, and ethanol are commonly used in solvent extraction due to their efficiency in separating organic compounds. However, these solvents can emit hazardous vapors. That’s where a solvent vapor detector like the Evikon E2608-PID becomes essential—ensuring continuous monitoring of these emissions for both safety and regulatory compliance.
In the UAE and GCC, industries such as chemical manufacturing, paints, printing, and pharmaceuticals are rapidly growing. These sectors often use large quantities of volatile solvents. To comply with Civil Defence and municipal air quality standards, installing a vapor detector or solvent vapor sensor helps protect workers and maintain safe, efficient facilities—aligning with the region’s focus on sustainability and occupational safety.
Enhance workplace safety and environmental control with the Evikon E2608-PID Solvent Vapors Detector. Designed for reliable detection of VOCs, this vapor pressure sensor ensures compliance with international safety standards while reducing the risk of solvent vapor exposure.
Contact Gas Detectors UAE—your trusted hydrogen gas detection suppliers in the UAE and Authorized Distributor of Evikon, Estonia—to get a quote or technical consultation today.
