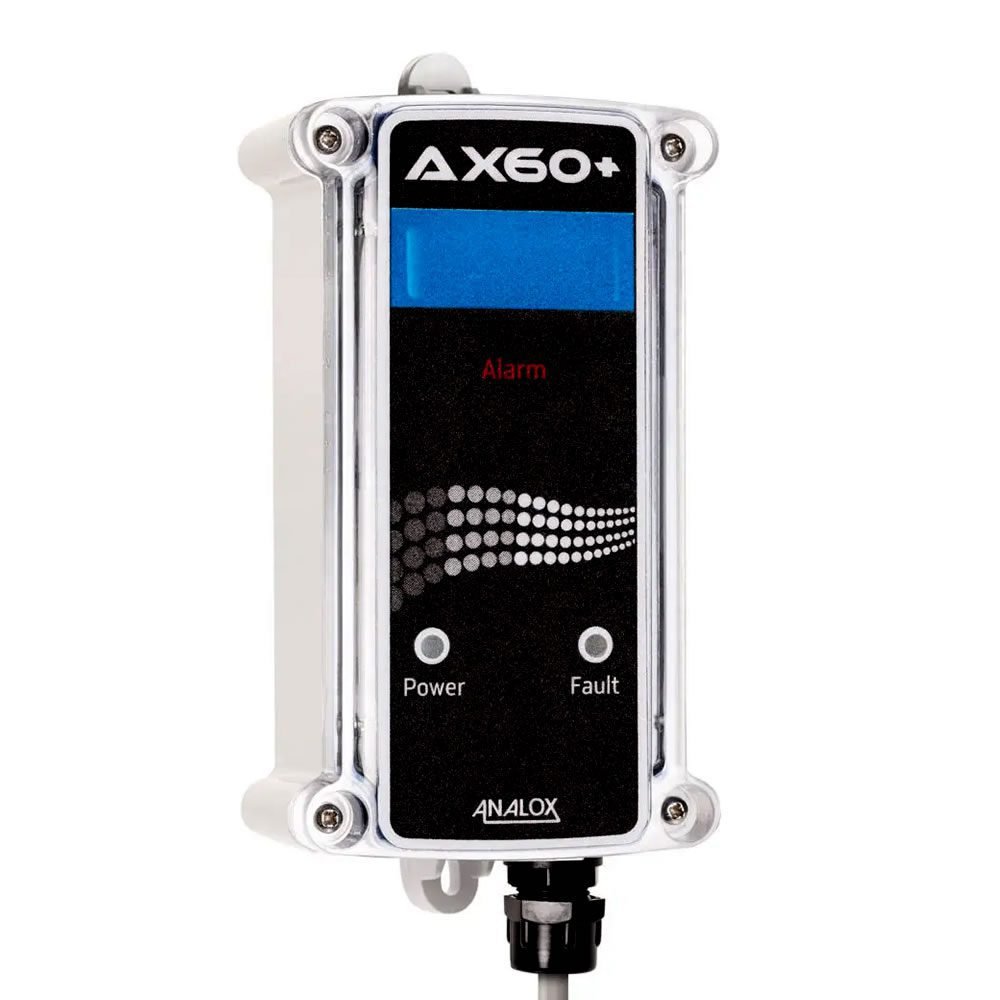

Analox AX60+ Alarm Unit – Blue
Analox AX60+ Alarm Unit – Blue - Image 2

Analox AX60+ Alarm Unit – Blue

Login to see price

Analox AX60+ modular gas safety system – strobe alarm unit (Blue) compatible with CO₂, O₂, CO sensors in the AX60+ system.

Specifications:

  • Strobe Intensity: > 100 cd

  • Sounder Level: ≥ 80 dBA @ 3 m

  • Color Filter: Blue

  • Compatibility: AX60+ modular system (up to 8 alarms per sensor)

  • Relay Support: Supports built-in relay or external relay via central display

  • Power Supply: Supplied by the sensor network cable (no separate supply needed)

  • Housing Rating / Protection: IP55 (splash proof)

  • Warranty: 5 years electronics

  • Dimensions (W × H × D): 72 mm × 132 mm × 52 mm (3 in × 5.1 in × 2 in)

  • Weight: ~ (standard alarm unit weight, typically < 0.5 kg)

Add to quote

Description

The Analox AX60+ Alarm Unit (Blue) is part of the AX60+ modular gas safety system, designed to visually and audibly indicate alarm conditions in gas detection setups. The AX60+ system allows combining sensors for CO₂, O₂, CO (or combinations) with central display, data output modules, and alarm units to build a customized gas monitoring configuration. Analox Group+1

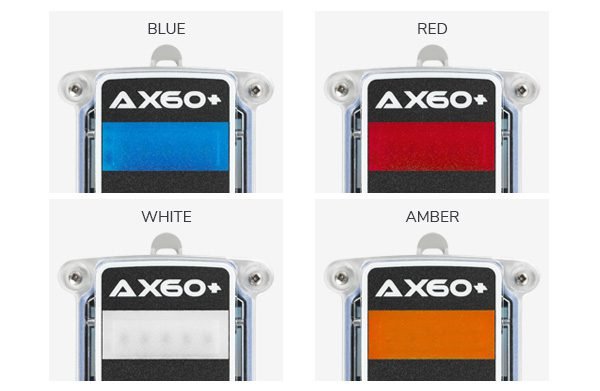

Each alarm unit includes a strobe LED above 100 cd output, and a sounder of at least 80 dBA at 3 meters. The alarm units connect to the sensor via the AX60+ network. You can choose from multiple color filters — in this case, the Blue version — to match visual coding or environment design.
This unit is ideal for use in industrial, laboratory, or commercial applications where gas safety indication must be clearly visible.
