Description
| Parameter | Details |
|---|---|

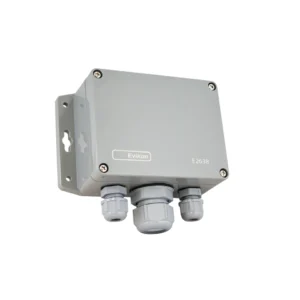

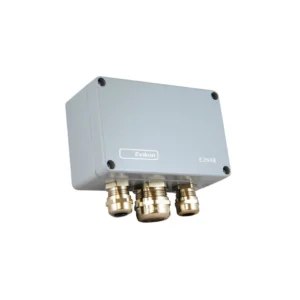

| Model | E2608-C₂H₄ |
| Detected Gas | Ethylene (C₂H₄) |
| Sensor Type | Electrochemical |
| Detection Range | 0…10 ppm, 0…100 ppm, or 0…1000 ppm |
| Output Signals | 4-20 mA, 0-10 V, RS485 (Modbus RTU) |
| Power Supply | 11–30 V DC |
| Operating Temperature | –20 °C to +50 °C |
| Humidity Range | 15–90 % RH (non-condensing) |
| Enclosure Rating | IP65 |
| Mounting Options | Wall or duct mount |
| Housing Material | ABS plastic |
| Dimensions | 90 × 145 × 55 mm |
| Manufacturer | Evikon, Estonia |
Ethylene gas is a colorless, flammable hydrocarbon that acts as a natural plant hormone. In industrial applications, it’s used in food ripening, chemical production, and plastic manufacturing. However, when present in high concentrations, ethylene poses fire and explosion hazards. Continuous monitoring using an ethylene gas detector is crucial to ensure safe storage and processing environments. It also helps maintain product quality in warehouses and cold storage facilities where ethylene can accelerate spoilage.
A gas detector works by continuously analyzing air samples for the presence of target gases. Sensors such as electrochemical, catalytic bead, or infrared—react to gas molecules and generate a proportional electrical signal. This signal is then converted into readable data or alarms when the gas level exceeds a preset threshold. In the case of the ethylene gas detector, it alerts operators instantly, helping prevent accidents, leaks, or equipment damage.
There are four main types of gas detectors commonly used across industries:
-
Electrochemical sensors (for toxic gases like ethylene and chlorine).
-
Catalytic sensors (for combustible gases).
-
Infrared sensors (for CO₂ and hydrocarbons).
-
Photoionization detectors (PID) (for VOCs and solvent vapors).
Each type serves different environments, but for accurate ethylene gas detection, electrochemical and infrared-based detectors are the most reliable choices.
Ethylene oxide (EtO) sterilization is a process used to disinfect medical devices and instruments. Ethylene oxide gas penetrates packaging materials and destroys microorganisms without damaging the product. Since EtO is toxic and explosive, ethylene oxide sensors are essential for monitoring and preventing exposure during sterilization and aeration phases. Facilities handling EtO rely on ethylene gas detectors for leak detection and workplace safety compliance.
In the UAE and GCC, ethylene gas detection is vital for industries like food processing, cold storage, chemical plants, and pharmaceutical manufacturing. The hot climate accelerates chemical reactions, increasing the risk of vapor buildup and equipment leaks. Reliable ethylene detectors ensure compliance with local civil defense and municipal codes protecting both workers and assets in sectors where safety and precision matter most.
Why Choose Gas Detectors UAE?
Gas Detectors UAE is the trusted authorized distributor of Evikon, Estonia, providing certified ethylene gas detectors, ethylene oxide sensors, and ethylene gas absorbers across the UAE and GCC. We help industries achieve international safety compliance while delivering reliable performance suited to local environmental conditions.
Enhance your facility’s safety with advanced ethylene gas detection systems.
Contact Gas Detectors UAE, your trusted ethylene gas detector supplier and authorised distributor of Evikon, Estonia.
Request a free quote or consultation for ethylene detection, ethylene oxide monitoring, and industrial safety solutions today.
